Description

Small Size. Big Performance. Built for Near-Surface Success.

VPEG-8 eVib Brochure
VPEG-16 eVib Brochure

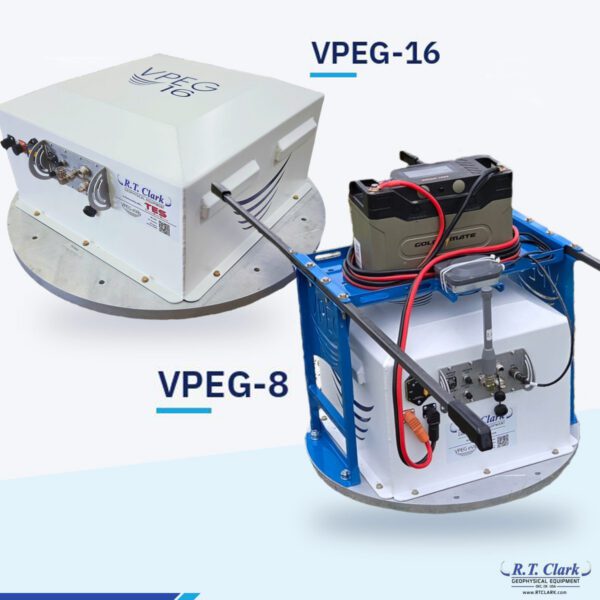

The VPEG eVib is a battery-powered electromagnetic seismic vibrator for near-surface imaging delivering controlled broadband seismic energy without the size, cost, and complexity of hydraulic vibroseis trucks.

High-power electromagnetic transducers generate frequency sweeps from <8 Hz to 800 Hz (full drive 20–800 Hz), so you can design source signals for shallow imaging, engineering studies, and environmental surveys. Because the VPEG runs entirely on 12-volt DC battery power, it goes where heavy equipment can’t: remote sites, urban streets, and restricted-access locations.

The VPEG was developed by R.T. Clark with Mark Davidson (SeisMark) and Seismic Source Inc.

Key features

Broadband sweeps: <8 Hz – 800 Hz; full-drive bandwidth 20 – 800 Hz
12V DC battery powered: no generator, hydraulics, or fuel
Wireless control: Wi-Fi or Ethernet from a laptop or Android tablet, plus manual push-button start
Seismic Source control suite: single or multi-sweep operation and multi-unit synchronization
GPS positioning: 20 cm-accurate GPS antenna; RTK correction subscription available through Seismic Source
Seismograph triggering: 3-pin trigger output
Low mechanical noise: electromagnetic actuation is far quieter than impact sources, improving correlation and signal fidelity
Flexible deployment: hand carry, Power Hitch Lift, mini skid-steer mount, or permanent installation
Made in the USA

Deployment options

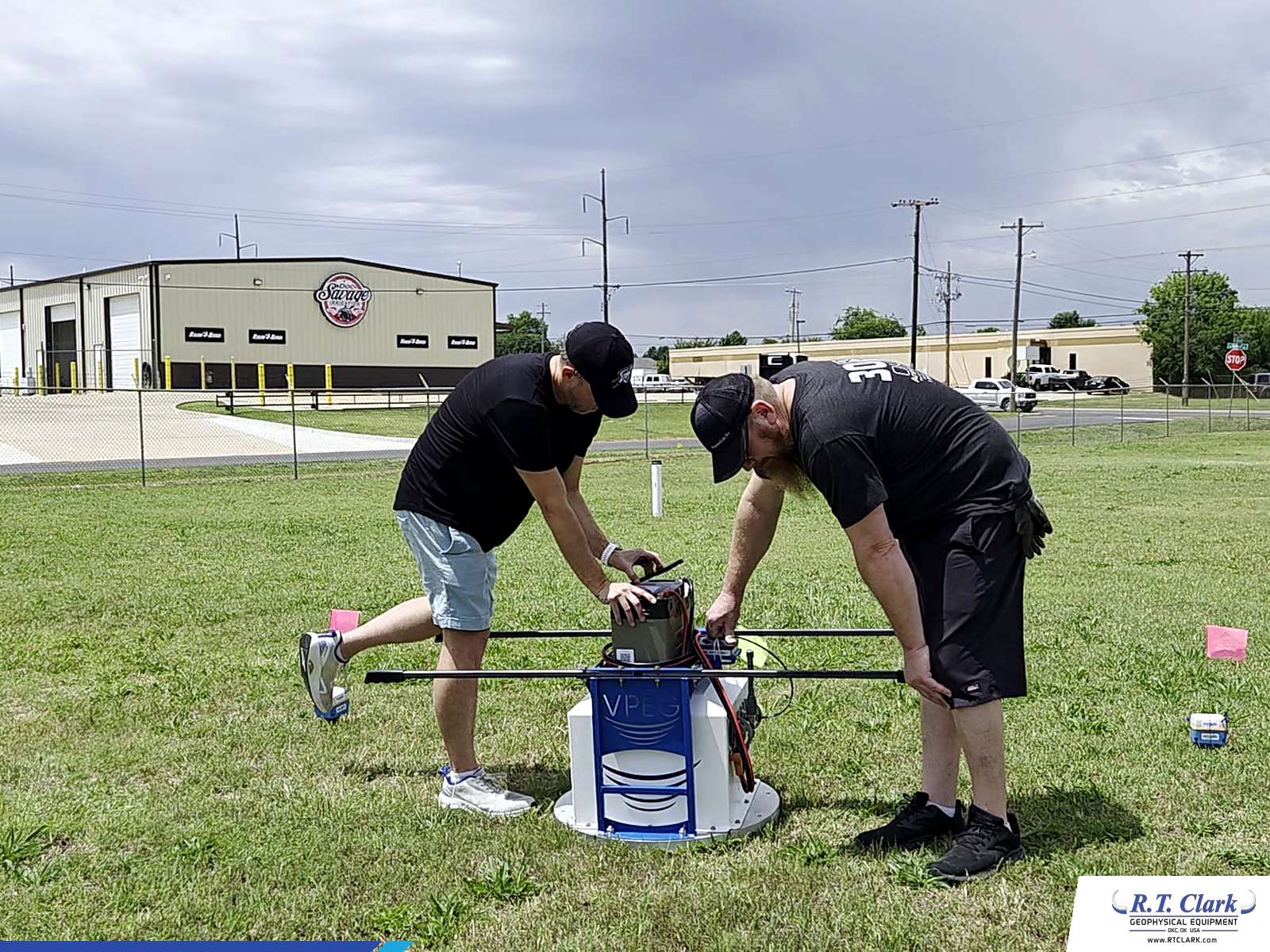

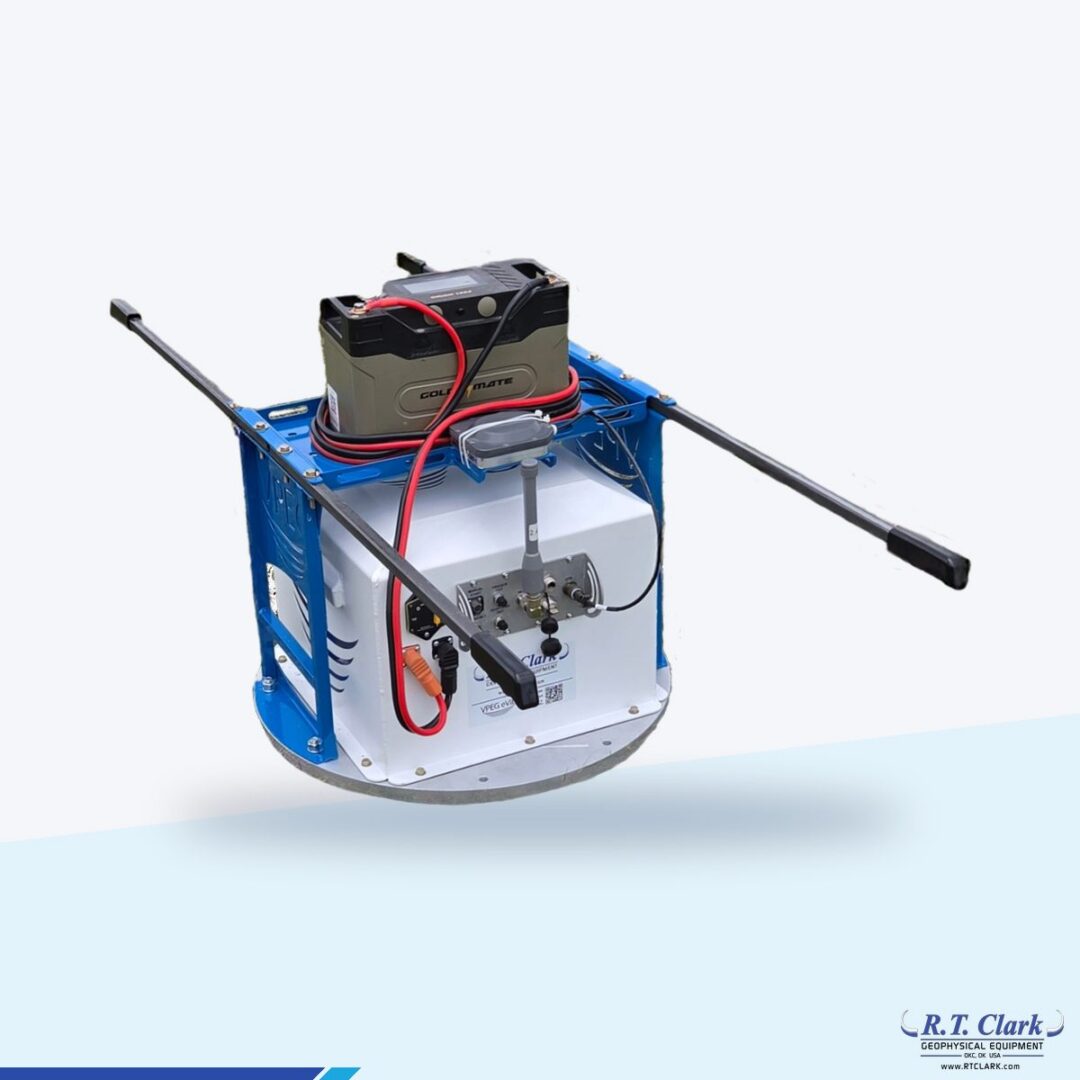

Carry Mount (hand carry): VPEG-8

Carry handles let a small field crew pick up the VPEG-8 and move it from shot point to shot point on foot. That’s ideal for tight spacing, soft ground, parks, campuses, and sites vehicles can’t reach.

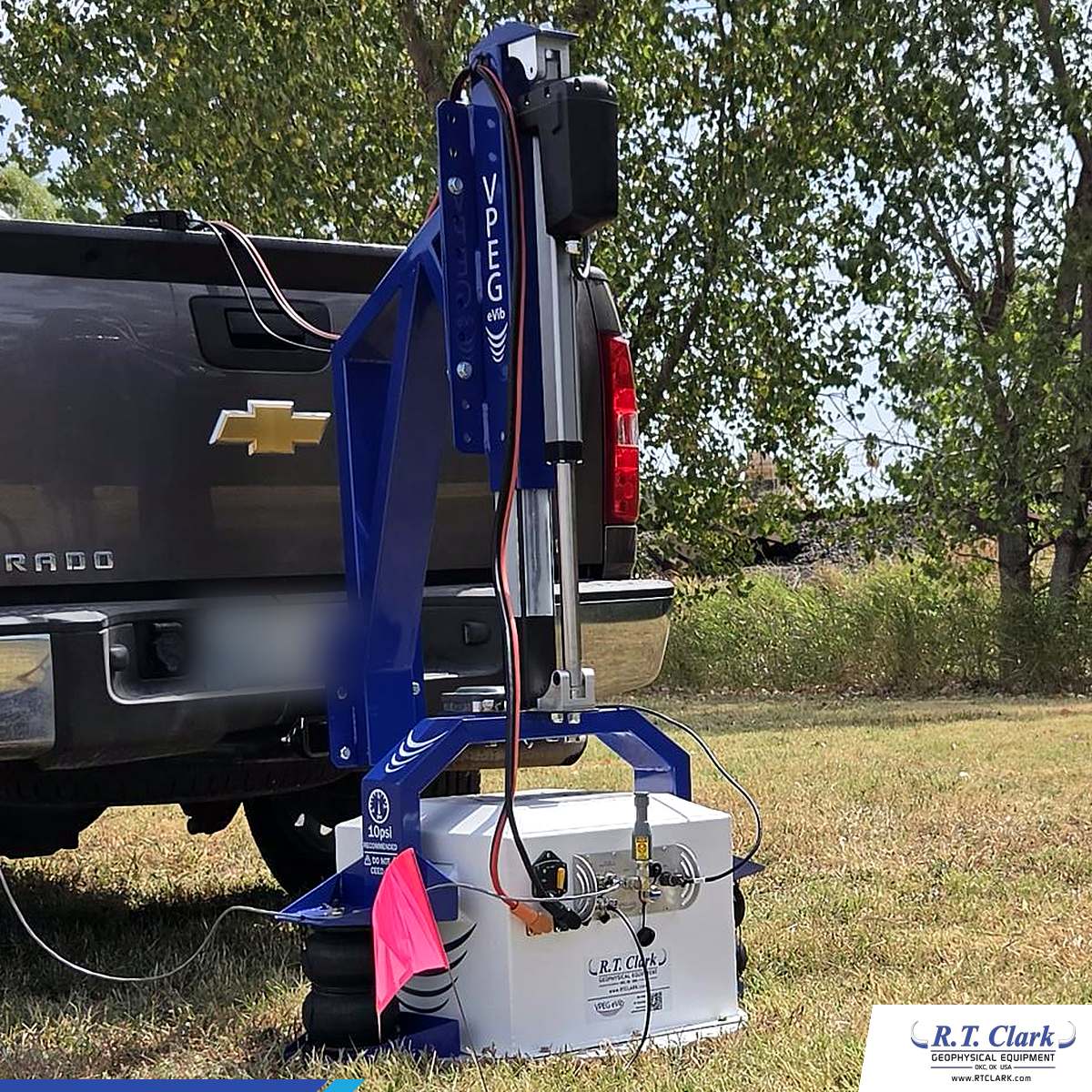

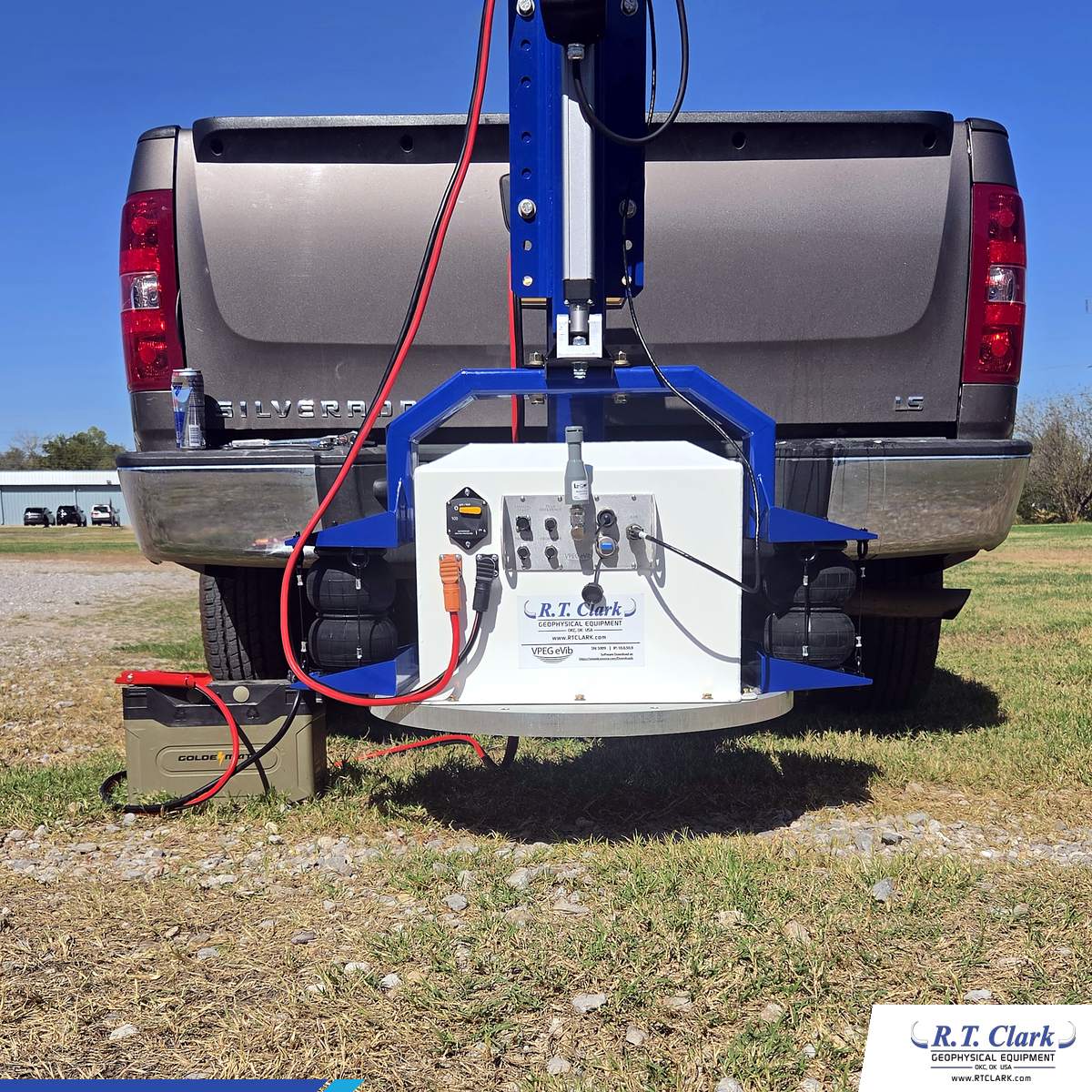

Power Hitch Lift: VPEG-8

The Power Hitch Lift mounts on a standard 2-inch receiver hitch. Lower the VPEG to the ground, sweep, lift, and drive to the next point without anyone lifting the unit.

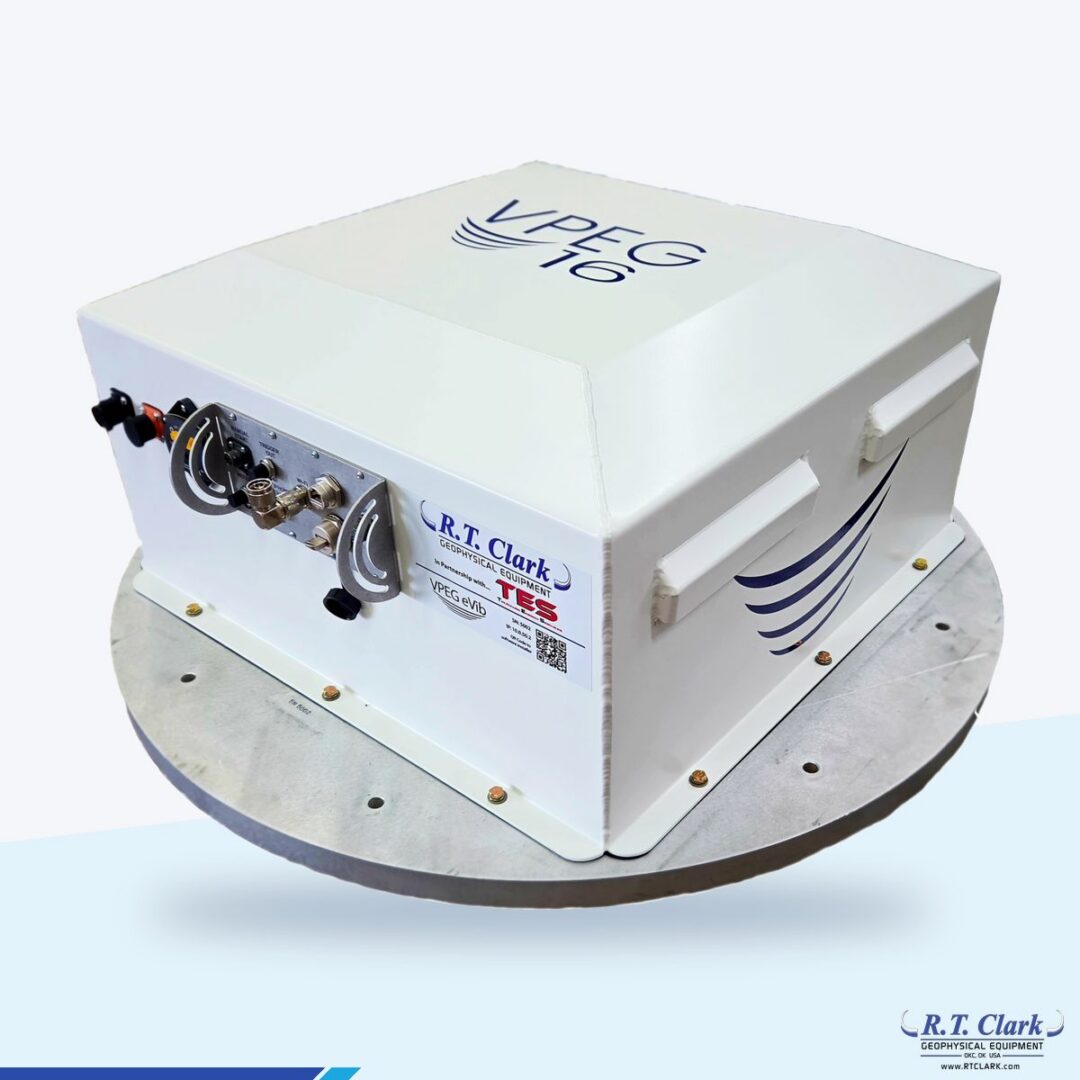

Mini skid-steer mount: VPEG-16

The VPEG-16 mounts to a mini skid-steer for production work, with adaptors available for other carrier types.

Permanent installation

VPEG units can be permanently installed for repeat or monitoring applications.

Applications

Near-surface seismic imaging (reflection and refraction)
MASW and surface-wave studies
Environmental and engineering geophysics
Mining exploration
Hazard and infrastructure surveys
Static correction surveys
Academic and seismic research

What’s included:

Each VPEG system includes: power cables, Wi-Fi antenna, high-accuracy GPS antenna, manual push-button, and access to the Seismic Source software suite.

Required, not included: 12VDC battery (LiFePO4 100ah or greater recommended), plus a laptop or Android tablet for wireless control.

Popular options: Power Hitch Lift (VPEG-8), 4.5 Hz reference geophone, BNC trigger cable, RTK correction subscription.
